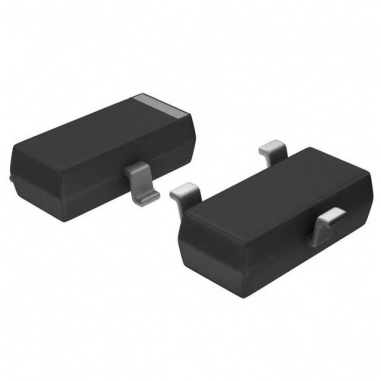

- Mosfet N Channel Smd Connector
- Mosfet N Channel Smd System
- N Channel Mosfet Transistor
- N Channel Mosfet Circuit
A N-Channel MOSFET is a type of MOSFET in which the channel of the MOSFET is composed of a majority of electrons as current carriers. When the MOSFET is activated and is on, the majority of the current flowing are electrons moving through the channel.
The BSS138 is an SMD Package Logic Level N-Channel MOSFET with low on-state resistance (3.5Ω) and low input capacitance (40 pF). Adding to this the Mosfet can also switching at high speed of 20ns. Due to the low threshold voltage and high switching speed this Mosfet is commonly used in level shifter circuits. MOSFET SMD/SMT N-Channel, P-Channel MOSFET Products (369) Datasheets (318). N-Channel 30 V 5 A MOSFET are available at Mouser Electronics. Mouser offers inventory, pricing, & datasheets for N-Channel 30 V 5 A MOSFET. SMD/SMT N-Channel 60 A MOSFET Products (169) Datasheets (152) Images (46).
This is in contrast to the other type of MOSFET, which are P-Channel MOSFETs, in which the majority ofcurrent carriers are holes.
Before, we go over the construction of N-Channel MOSFETs, we must go over the 2 types that exist. There are 2 types of N-Channel MOSFETs, enhancement-type MOSFETs and depletion-type MOSFETs.
A depletion-type MOSFET is normally on (maximum current flows from drain to source) when no differencein voltage exists betweeen the gate and source terminals. However, if a voltage is applied to its gate lead, the drain-source channel becomes more resistive, until the gate voltage is so high, the transistor completely shuts off. An enhancement-type MOSFET is the opposite. It is normally off when the gate-source voltage is 0(VGS=0). However, if a voltage is applied to its gate lead, the drain-source channel becomesless resistive.
In this article, we will go over how both N-Channel enhancement-type and depletion-type are constructed and operate.
How N-Channel MOSFETs Are Constructed Internally
An N-Channel MOSFET is made up of an N channel, which is a channel composed of a majority of electron current carriers. The gate terminals are made up of P material. Depending on the voltage quantity and type (negative or positive)determines how the transistor operates whether it turns on or off.
How an N-Channel Enhancement type MOSFET Works
How to Turn on a N-Channel Enhancement type MOSFET
To turn on a N-Channel Enhancement-type MOSFET, apply a sufficient positive voltage VDD to the drain of the transistorand a sufficient positive voltage to the gate of the transistor. This will allow a current to flow through the drain-source channel.
So with a sufficient positive voltage, VDD, and sufficient positive voltage applied to the gate, the N-Channel Enhancement-type MOSFET is fully functional and is in the 'ON' operation.
How to Turn Off an N-Channel Enhancement type MOSFET
To turn off an N-channel Enhancement MOSFET, there are 2 steps you can take. You can either cut off the bias positivevoltage, VDD, that powers the drain. Or you can turn off the positive voltagegoing to the gate of the transistor.
How a N-Channel Depletion-type MOSFET Works
How to Turn on an N-Channel Depletion-Type MOSFET
To turn on an N-channel Depletion-type MOSFET, to allow for maximum current flow from drain to source, the gate voltage should be set to 0V. When the gate voltage is at 0V, the transistor conducts the maximum amount of current and is in the active ON region. To reducethe amount of current that flows from the drain to source, we apply a negative voltage to the gate of the MOSFET. As the negative voltage increases (gets more negative), less and less current conducts across from the drain to the source. Once the voltage at the gate reaches a certain point, all current ceases to flowfrom the drain to the source.
So with a sufficient positive voltage, VDD, and no voltage (0V) applied to the base, the N-channel JFET is in maximum operation and has the largest current. As we increase the negative voltage, current flows gets reduced until the voltage is so high (negative), that all current flow is stopped.
How to Turn Off an N-Channel Depletion-type MOSFET
To turn off the N-channel Depletion-type MOSFET, there are 2 steps you can take. You can either cut off the bias positivevoltage, VDD, that powers the drain. Or you can apply sufficient negative voltage to the gate. When sufficientvoltage is applied to the gate, the drain current is stopped.
MOSFET transistors are used for both switching and amplifying applications. MOSFETs are perhaps the most popular transistors used today. Their high input impedance makes them draw very little input current, they are easy to make, can be made very small, and consume very little power.
Related Resources
How to Build an N-Channel MOSFET Switch Circuit
P Channel MOSFET Basics
N Channel JFET Basics
P Channel JFET Basics
Types of Transistors
Let’s talk about the basics of MOSFET and how to use them. This tutorial is written primarily for non-academic hobbyists, so I will try to simplify the concept and focus more on the practical side of things.
However if you are into how MOSFET work, I will share some useful academic articles and resources at the end of this post. MOSFET has some advantage and disadvantage over BJT, so choose carefully base on your application.
You can buy MOSFET’s for Arduino Projects on Amazon: http://amzn.to/2Gk6ruW
MOSFET stands for metal-oxide semiconductor field-effect transistor. It is a special type of field-effect transistor (FET).
Unlike BJT which is ‘current controlled’, the MOSFET is a voltage controlled device. The MOSFET has “gate“, “Drain” and “Source” terminals instead of a “base”, “collector”, and “emitter” terminals in a bipolar transistor. By applying voltage at the gate, it generates an electrical field to control the current flow through the channel between drain and source, and there is no current flow from the gate into the MOSFET.
A MOSFET may be thought of as a variable resistor, where the Gate-Source voltage difference can control the Drain-Source Resistance. When there is no applying voltage between the Gate-Source , the Drain-Source resistance is very high, which is almost like a open circuit, so no current may flow through the Drain-Source. When Gate-Source potential difference is applied, the Drain-Source resistance is reduced, and there will be current flowing through Drain-Source, which is now a closed circuit.
In a nutshell, a FET is controlled by the Gate-Source voltage applied (which regulates the electrical field across a channel), like pinching or opening a straw and stopping or allowing current flowing. Because of this property, FETs are great for large current flow, and the MOSFET is commonly used as a switch.
Okay, let me summarize the differences between BJT and MOSFET.
- Unlike bipolar transistors, MOSFET is voltage controlled. While BJT is current controlled, the base resistor needs to be carefully calculated according to the amount of current being switched. Not so with a MOSFET. Just apply enough voltage to the gate and the switch operates.
- Because they are voltage controlled, MOSFET have a very high input impedance, so just about anything can drive them.
- MOSFET has high input impedence.
Mosfet N Channel Smd Connector
To use a MOSFET as a switch, you have to have its gate voltage (Vgs) higher than the source. If you connect the gate to the source (Vgs=0) it is turned off.
For example we have a IRFZ44N which is a “standard” MOSFET and only turns on when Vgs=10V – 20V. But usually we try not to push it too hard so 10V-15V is common for Vgs for this type of MOSFET.
However if you want to drive this from an Arduino which is running at 5V, you will need a “logic-level” MOSFET that can be turned on at 5V (Vgs = 5V). For example, the ST STP55NF06L. You should also have a resistor in series with the Arduino output to limit the current, since the gate is highly capacitive and can draw a big instantaneous current when you try to turn it on. Around 220 ohms is a good value.
This page shows some detail explanation how a MOSFET works as a switch. This page shows some advanced usage of MOSFET.
MOSFETs come in four different types. There are three main categories we need to know.
- N-Channel (NMOS) or P-Channel (PMOS)
- Enhancement or Depletion mode
- Logic-Level or Normal MOSFET
N-Channel – For an N-Channel MOSFET, the source is connected to ground. To turn the MOSFET on, we need to raise the voltage on the gate. To turn it off we need to connect the gate to ground.
P-Channel – The source is connected to the power rail (Vcc). In order to allow current to flow the Gate needs to be pulled to ground. To turn it off the gate needs to be pulled to Vcc.
Depletion Mode – It requires the Gate-Source voltage ( Vgs ) applied to switch the device “OFF”.
Enhancement Mode – The transistor requires a Gate-Source voltage ( Vgs ) applied to switch the device “ON”.
Despite the variety, the most commonly used type is N-channel enhancement mode.
There are also Logic-Level and Normal MOSFET, but the only difference is the Gate-Source potential level required to drive the MOSFET.
Mosfet N Channel Smd System
I will try to explain it in the simplest way I can, for more detail or if you are in doubt, check the references and links I provide at the bottom of the post.
MOSFET is a voltage controlled field effect transistor that differs from a JFET. The Gate electrode is electrically insulated from the main semiconductor by a thin layer of insulating material (glass, seriously!). This insulated metal gate is like a plate of a capacitor which has an extremely high input resistance (as high as almost infinite!). Because of the isolation of the Gate there is no current flow into the MOSFET from Gate.
When voltage is applied at the gate, it changes the width of the Drain-Source channel along which charge carriers flow (electron or hole). The wider the channel, the better the device conducts.
The MOSFET are used differently compared to the conventional junction FET.
- The infinite high input impedance makes MOSFETs useful for power amplifiers. The devices are also well suited to high-speed switching applications. Some integrated circuits contain tiny MOSFETs and are used in computers.
- Because the oxide layer is so thin, the MOSFET can be damaged by built up electrostatic charges. In weak-signal radio-frequency work, MOSFET devices do not generally perform as well as other types of FET.
N Channel Mosfet Transistor
Where to put the load to a MOSFET? Source or Drain?
N Channel Mosfet Circuit
Because load has resistance, which is basically a resitor. For N-channel MOSFET the reason we usually put the load at the Drain side is because of the Source is usually connected to GND.
If load is connected at the source side, the Vgs will needs to be higher in order to switch the MOSFET, or there will be insufficient current flow between source and drain than expected.
Heat Sink connected to the Drain?
Typically the heat sink on the back of a MOSFET is connected to the Drain! If you mount multiple MOSFETs on a heat sink, they must be electrically isolated from the heat sink! It’s good practice to isolate regardless in case the heat sink is bolted to a grounding frame.
What is the Body Diode For?
MOSFETs also have an internal diode which may allow current to flow unintentionally. The body diode will also limit switching speed. You don’t have to worry about it if you are operating under 1Mhz.
